SGM2904.pdf
No.10663
? Wide Input Common Mode and Differential Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? High Input Impedance
? Low Offset Voltage: 4mV (MAX)
? Low Noise: 40nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2MHz
? Slew Rate: 0.6V/?s
? -40℃ to +125℃ Operating Temperature Range

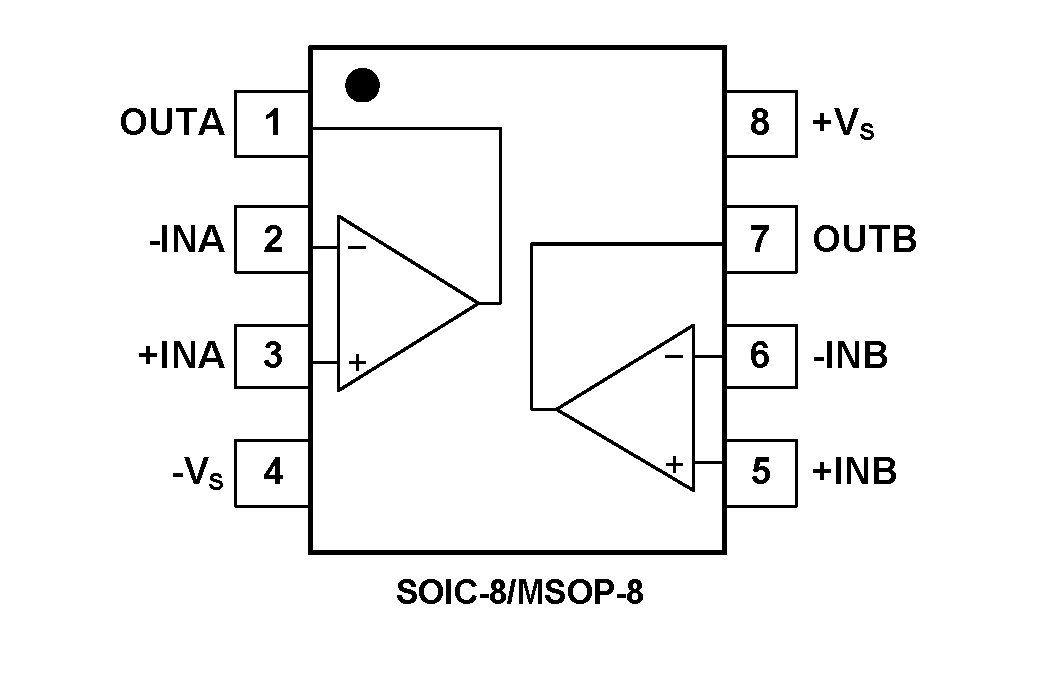

? Available in Green SOIC-8 and MSOP-8 Packages
The SGM2904 is a dual operational amplifier which is designed to offer a wide input common mode voltage range and output voltage swing. The device can operate from ±1.65V to ±13V dual power supplies or from 3.3V to 26V single supply.
The device features low noise, high slew rate, low input bias and offset current, and low offset voltage.
The SGM2904 is available in Green SOIC-8 and MSOP-8 packages. It is specified over the extended -40℃ to +125℃ temperature range.
