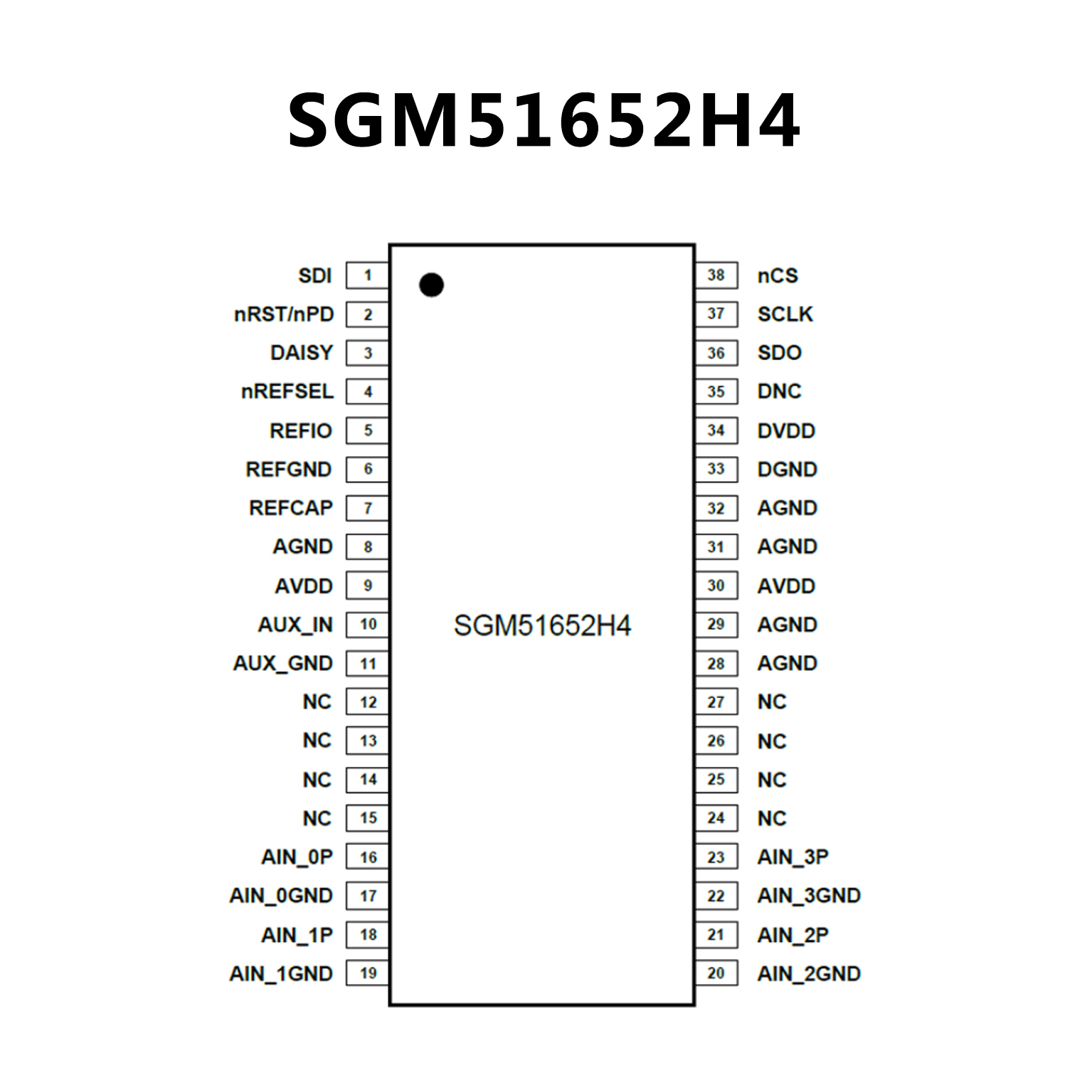

SGM51652H4.pdf? 16 Bits ADC
? Programmable Input Ranges:
Bipolar Ranges: ±10.24V, ±5.12V, and
±2.56V0.24V, ±5.12V, and ±2.56V
Unipolar Ranges: 0V to 10.24V and 0V to 5.12V
? Supply Voltage Ranges:
Analog Supply: 5V
I/O Supply: 1.65V to 5V
? On-Chip Reference: 4.096V
? Differential Nonlinearity (DNL): ±0.65LSB
? Integral Nonlinearity (INL):
±1.1LSB for All Bipolar Ranges
±0.5LSB for All Unipolar Ranges
? Signal-to-Noise Ratio (SNR): 91dB
? Total Harmonic Distortion (THD): -102dB
? Alarm Features
? Daisy-Chain Operation
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-38 Package

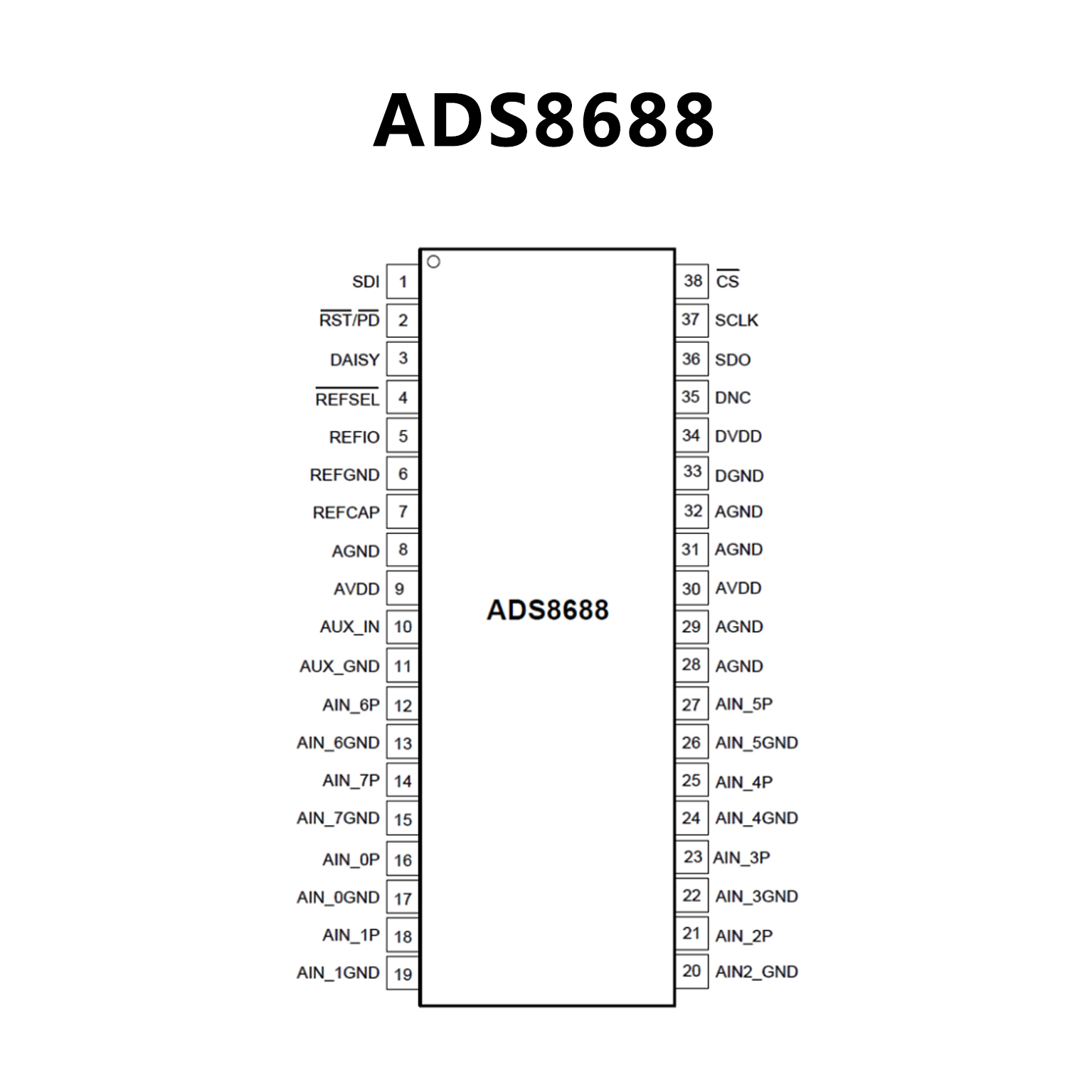

? 16-Bit ADCs with Integrated Analog Front-End
? 4-, 8-Channel MUX with Auto and Manual Scan
? Channel-Independent Programmable Input Ranges:
Bipolar: ±10.24 V, ±5.12 V, ±2.56 V
Unipolar: 10.24 V, 5.12 V
? 5-V Analog Supply: 1.65-V to 5-V I/O Supply
? Constant Resistive Input Impedance: 1 MΩ
? Input Overvoltage Protection: Up to ±20 V
? On-Chip, 4.096-V Reference with Low Drift
? Excellent Performance:
500-kSPS Aggregate Throughput
DNL: ±0.5 LSB; INL: ±0.75 LSB
Low Drift for Gain Error and Offset
SNR: 92 dB; THD: –102 dB
Low Power: 65 mW
? AUX Input → Direct Connection to ADC Inputs
? SPI?-Compatible Interface with Daisy-Chain
? Industrial Temperature Range: –40°C to 125°C
? TSSOP-38 Package (9.7 mm × 4.4 mm)
